Matching Housing:
AA1501HD-XP 1.50mm Pitch，Housing
--------------------------------------------------------------------------------------------------------------------------------------------
| Product Type Features | Category | Wire-To-Board / Wire-To-Wire | ||
| Assembly Type | Wafer | |||
| Pitch (mm) | 1.50mm | |||
| Product Series | AA1501 Series | |||
| Electrical characteristics | Operating Voltage (V AC/DC) | 100 | ||
| Current(Max)(A) | 2 | |||
| Contact Resistance | 20mΩ Max | |||
| Insulation Resistance | 1000MΩ Min | |||
| Configuration Features | Number of Rows | 1 | ||
| Number of Positions | 2P~16P | |||
| Shell characteristics | Color | Ivory | ||
Material PIN MATERIAL PIN PLATING | LCP, UL94V-0 Phosphor Bronze Tin over Nickel | |||
| Use the environment | Operating Temperature Range (°C) | -40℃~105℃ | ||
| Industry Standard | UL/CUL | E326732 | ||
Related Products

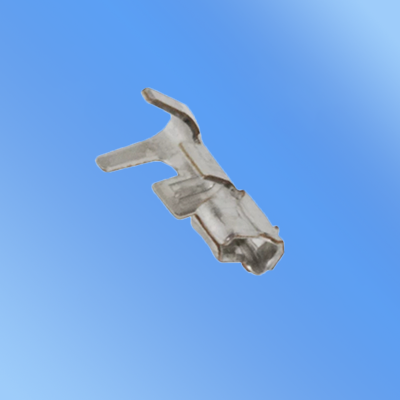

Terminal-1.50mm Pitch，Crimp Terminal，AWG：24#-30#
Terminal-1.50mm Pitch，Crimp Terminal，AWG：24#-30#

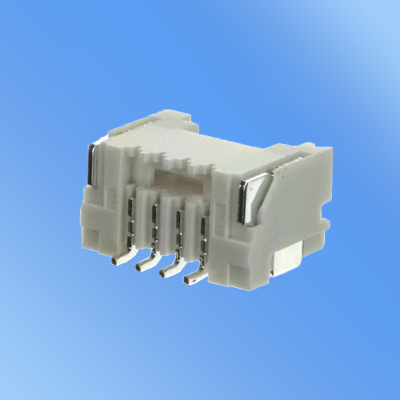

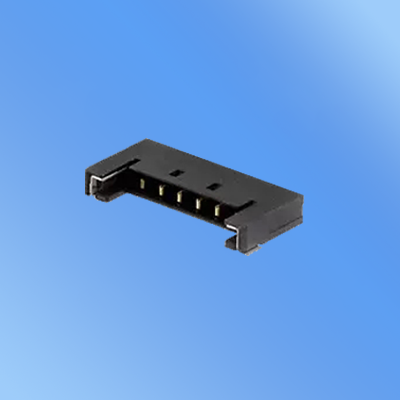

Wafer-1.50mm Pitch，90°，SMT Wafer
