| Material Info. | |
| Case | PA66 UL94 V-0 |
| Conductor | Brass, tin plated |
| Screw | C1018 steel, zinc plated - M2.5 |
| Brass hole | Brass, nickel plating |
| Electrical Data | ||
| Item | IEC | UL |
| Wire Range | 0.5 - 4.0mm2 | 24 -12 AWG |
| Rated Voltage | 250V | 250V |
| Current Rating | 20A | 10A |
| Withstand Voltage | 2000V/1min | 1500V/1min |
| Operation Temperature | -33°C ~+105°C |
CQC, CB, CE

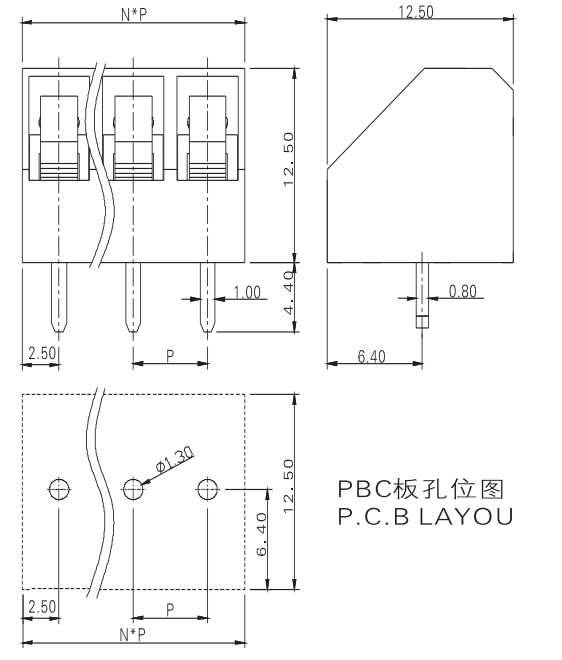

P=5.0mm L=P*pole
