| Material Info. | |
| Case | PA66 UL94 V-0 |
| Conductor | Brass, Tin plated |
| Screw | C1018 steel, zinc plated - M1.6 |
| Brass hole | Brass, nickel plating |
| Electrical Data | ||
| Item | IEC | UL |
| Wire Range | 0.5mm2 | 20 AWG |
| Rated Voltage | 125V | 150V |
| Current Rating | 6A | 5A |
| Withstand Voltage | 1250V/1min | 1300V/1min |
| Operation Temperature | -33°C ~+105°C |
CQC, CB, CE

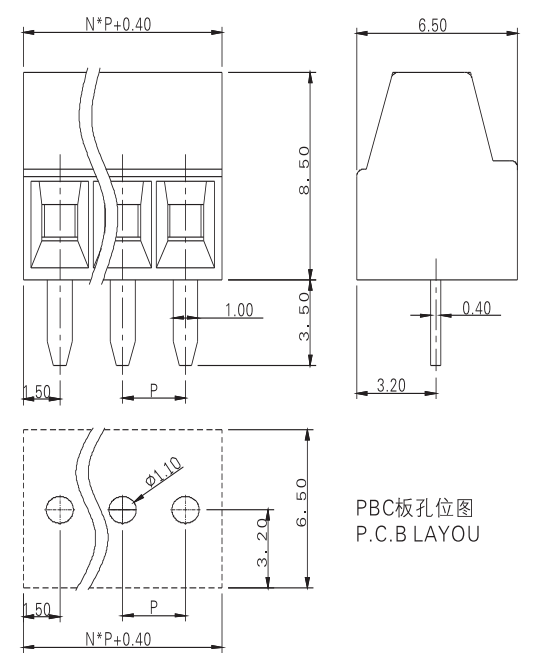

P=2.54mm L=P*pole + 0.40mm
