Matching Terminal:
AB2011-T 2.00mm Pitch，Crimp Terminal
--------------------------------------------------------------------------------------------------------------------------------------------
| Product Type Features | Category | Board-to-Board | ||
| Assembly Type | Housing | |||
| Pitch (mm) | 2.00mm | |||
| Product Series | AB2011 Series | |||
| Electrical characteristics | Operating Voltage (V AC/DC) | 250 | ||
| Current(Max)(A) | 3 | |||
| Contact Resistance | 30mΩ Max | |||
| Insulation Resistance | 1000MΩ Min | |||
| Configuration Features | Number of Rows | 2 | ||
| Number of Positions | 2x2P~2x16P | |||
| Shell characteristics | Color | Black | ||
Material | Nylon 9T, UL94V-0 | |||
| Use the environment | Operating Temperature Range (°C) | -40℃~105℃ | ||
| Industry Standard | UL/CUL | E326732 | ||
Related Products

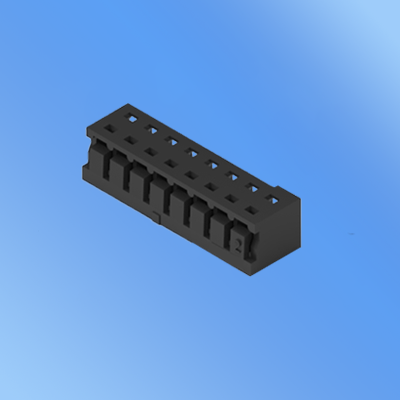

Housing-2.00mm Pitch，Dual Row Housing, Board-to-Board

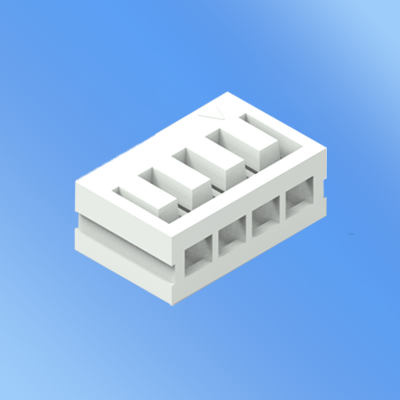

Housing-2.00mm Pitch，Housing

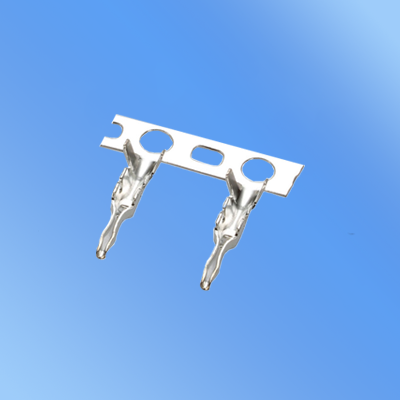

AB2011-T Terminal-2.00mm Pitch，Crimp Terminal

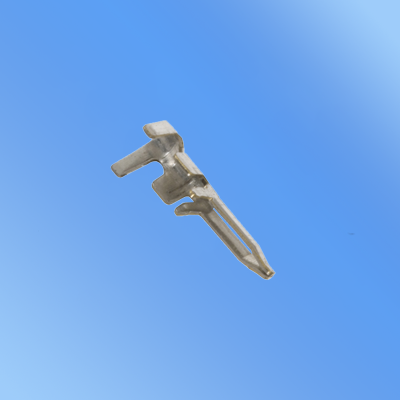

AB2011-T Terminal-2.00mm Pitch，Crimp Terminal
