| Material Info. | |
| Case | PA66 UL94 V-0 |
| Cover | PA66 UL94 V-0 |
| Button | PA66 +15GF UL94 V-0 |
| Shrapnel | SUS301 Stainless steel |
| Clamping piece | Phosphor copper C5191, bright tin plated |
| Electrical Data | ||
| Item | IEC | UL |
| Wire Range | 0.2-1.5mm2 | 24 - 16AWG |
| Rated Voltage | 300V | 300V |
| Current Rating | 8A | 8A |
| Withstand Voltage | 2500V/1min | 1600V/1min |
| Mechanical Data | ||
| Item | IEC | UL |
| Max Torque | - | - |
| Strip Length | 9-10mm | |
| Operation Temperature | -33°C ~+105°C |

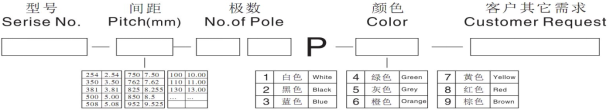

How to Order
UL, CE
P=3.5mm L=P*pole+0.8mm
