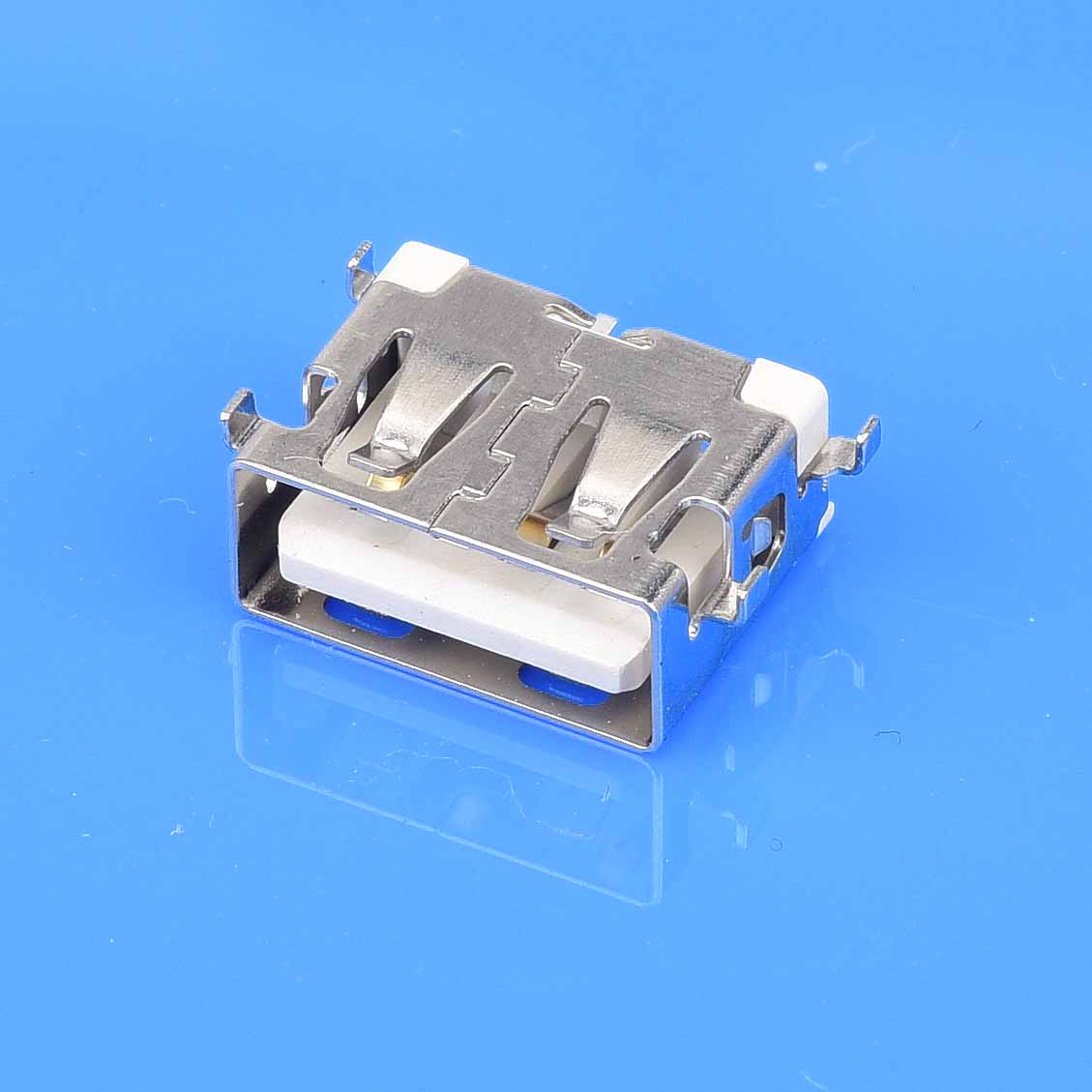

Part Info U2-JS-370403117-R (Gray) U2-JS-370403118-R (White) U2-JS-370403116-R (Black)
| Electrical Characteristics | Rated Voltage | 20VAC RMS | ||
| Rated Current | 2.4 A | |||
| Contact Resistance | 30mΩ Max | |||
Withstand Voltage | 500V AC for one minute at sea level | |||
| Mechanical Characteristics | Mating Force | 35N Max | ||
| Unmating Force | 10N Min | |||
| Material Info | Shell | Stainless steel T=0.30mm | ||
Housing Contact Mylar Contact Plating Shell Plating | High temp: LCP Copper alloy T=0.20mm Polyimide film, brown 3μ" gold plating on contact area and matte tin plated on soldertail all over nickel plating Nickel plating | |||
| Environmental Info | Operating Temperature Range (°C) Salt Spray | -40℃~85℃ 48H at 35% DC with 5% salt solution concentration | ||
